Teltec Systems ag - Flexible laser systems according to your requirements
Your requirement - laser processing, product marking, legal requirements, revolving back, brand protection, sales promotion.labelling products, legal regulations, traceability, trademark protection, sales promotion
You need to machine complex and high-precision parts and are looking for a more economical manufacturing method. Or you need or want to mark your products. Because legal regulations have to be complied with or various information has to be applied for traceability or for reasons of brand protection and safety. But also promotional and sales measures or targeted marketing and advertising campaigns can be decisive.
Our services - Laser processing
Through years of close cooperation with various laser manufacturers, we can offer you the highest laser and application know-how. Depending on the material and laser system, a wide variety of effects can be achieved. No matter for which materials or application, we have a suitable laser system for almost everything. Our flexible reliable laser solutions not only ensure high-precision and repeatable processing for diverse materials and products, but also, for example, process reliability through integrated verification of the correct content on the correct product. Thus, we can ensure consistent and highest processing quality. For this purpose, we offer systems and equipment which you can integrate as a stand-alone workstation, in an automation system, or in your production process.
Your benefit - laser processing
Based on our experience, you will receive a laser processing solution tailored to your application, with an optimal price-performance ratio and high quality.
There are virtually no limits to laser processing - ranging from laser marking with manufacturing and shelf life data, solder and serial numbers, graphics, 2D matrix and bar codes, to mirco processing, welding applications, ablation and cleaning.
FOBA Laser Marking Systems
Laser marking machines with vision system ensure reliable tracing M-Series - the next generation of FOBA laser marking systems
The laser marking systems of the M series are available in three different versions, the M1000, M2000 and M3000. The M1000 is a compact desktop unit, while the M2000 and M3000 are highly rigid stand-alone systems for maximum repeatability. Built into the M series are durable and high quality fibre lasers from 10 to 50W power. Since these lasers are air-cooled, the maintenance of the new laser marking systems is kept to an absolute minimum.
M1000: The compact table unit M1000 impresses with the good quality, the small footprint and the low purchase price. The machine is delivered with a fibre laser and a software-controlled Z-axis. The manual lift door is easy to handle, as an option, the M1000 can also be ordered with an electric lift door. The ease of use, the user-friendly marking software MarkUS and the price / performance ratio make the M1000 the ideal device for single parts and small batches.
M2000 / M3000: The stand-alone laser marking systems M2000 and M3000 are highly rigid and very stable devices for highest precision. The basis for this precision is the stable, reinforced with polymer concrete construction of these systems. The M3000 has a wider cabin (door opening M2000: 620 mm, door opening M3000: 970 mm) for larger workpieces. The M2000 / M3000 are available in three different versions: As a basic version with Z-axis and electric lift door, as a variant with XYZ axes and electric lift door and as a turntable system including co-rotating bulkhead. The systems are electrically height adjustable, so can be used as a sitting and standing workstation. The variants with XYZ axes or the turntable enable partial automation of the labelling process. For example, the M3000-P, with an X-axis of 520 mm and a Y-axis of 225 mm, allows customers to process multiple, part-filled pallets. As an option, the camera solutions Point & Shoot and IMP can be selected. The Point & Shoot is a perfect set-up aid designed for maximum repeatability. Intelligent Marking Positioning (IMP) automatically recognizes the workpieces and position and then aligns the lettering or engraving with precision and repeatability. This camera solution helps reduce rejects, increase efficiency and ensure process reliability Setup aid designed for highest repeatability. Intelligent Marking Positioning (IMP) automatically recognizes the workpieces and position and then aligns the lettering or engraving with precision and repeatability. This camera solution helps reduce rejects, increase efficiency and ensure process reliability Setup aid designed for highest repeatability. Intelligent Marking Positioning (IMP) automatically recognizes the workpieces and position and then aligns the lettering or engraving with precision and repeatability. This camera solution helps reduce rejects, increase efficiency and ensure process reliability
We advise and support FOBA customers throughout Switzerland with regard to laser markings of all kinds. We would be delighted to support you as well for the optimal labelling of your products, please do not hesitate to contact us in this regard. We are happy to mark pattern inscriptions for you on your own products and invite you to join us in the company to demonstrate the application directly to our lasers.
Further information Link to Foba Homepage
Application videos: Marking systems FOBA M series
Application videos: Marking systems FOBA M series https://youtu.be/U96JKQ-cuhE
PHOTON ENERGY GmbH produces OEM laser beam sources for industrial laser material processing and laser marking systems.

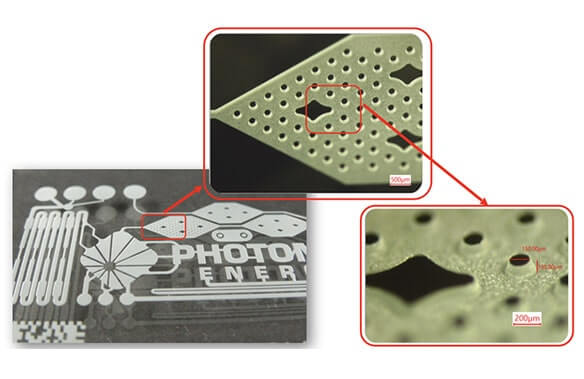

Ultra short pulse picosecond laser for extraordinarily high marking contrasts and micromachining
PHOTON ENERGY, CEPHEUS, laser marking system with UKPL (ultra-short pulse) picosecond laser
In order to obtain exceptionally high marking contrasts and to be able to process almost all materials, PHOTON ENERGY has developed the picosecond laser CEPHEUS. The great advantages of markings with this diode-pumped, mode-locked solid-state laser are the ultra-short pulse durations of the energy beam. These allow non-linear multiphoton absorption processes, which makes material processing largely independent of the laser wavelength. In other words, the unique quality of markings on a variety of materials is largely dependent on this extremely short pulse duration in combination with the high pulse peak power at which there is almost no temperature change on the surface.
This means that almost all materials can be processed, even those that are transparent at the laser wavelength. Another advantage of the ultrashort laser pulses is the "cold ablation" of the material, which is not based on the generation of heat, such as nanosecond lasers. The generated nanostructure on the surface serves as a light trap, whereby a significantly increased contrast and also a higher black level are achieved. Further, there is no reflective angle (shine) which causes the mark to appear in varying contrast or changing colour as the angle of incidence and viewing angle changes. The marking is therefore always dull black. Another advantage of processing with the CEPHEUS is the hydrophobic property of the label.
For this reason, PHOTON ENERGY's CEPHEUS picosecond laser is used for all laser processing processes in which damage from melting, deformation or discoloration due to heat input is undesirable and a maximum optical stability of the marking is required.
The CEPHEUS has the highest pulse peak energy available on the market and thus ensures less material removal per laser pulse. This significantly increases the precision, resulting in sharper marking edges and more precise material processing.
In summary, PHOTON ENERGY's CEPHEUS markers have the following advantages over other UKPL and longer pulsed lasers, such as nanosecond fibre laser sources or Nd: YAG lasers. Faster marking due to higher pulse peak powers and shorter pulses
- More uniform marking due to surface structure change (light trap) instead of tempering by means of energy input by temperature
- Consistent contrast (light trap) at changing light incidence and viewing angle
- Higher resistance of the marking during abrasive, chemical and radiation exposure
- No fading or corrosion of the marking during passivation, sterilization and autoclaving
- Almost all materials can be marked, including thin foils, all metals, all non-ferrous metals, all precious metals, all thermoplastics, all thermosets, most elastomers, glass (surface or glass without surface damage), diamond, lacquer coatings, etc.
- Surface of the label has hydrophobic (water-repellent) properties
- Validated, FDA-compliant short-pulse marking
We hope that this information has aroused your interest. Please contact me at any time for questions, to coordinate a visit and to coordinate pattern markings.
Drive Technology / Industrial Automation / CNC Systems
Industrial automation, drive technology
You need a reliable partner, with a wide range of components and systems for automation with an optimal price-performance ratio and high quality. You are looking for modular products including open interfaces of the used controllers and software which gives you the necessary flexibility. Since 2013 we have been cooperating with the isel Germany AG and since the beginning of 2016 with the company Ketterer. We ensure the distribution of these products in Switzerland and promote service, training and commissioning throughout Switzerland.
Through our extensive know-how, the efficient internal processes and the permanent transfer of knowledge from the manufacturer, we ensure you with our services proven quality products, tailored training, prompt and flexible service operations, as well as smooth transactions at any time.
A broad and modular product range "made in Germany", from individual motors, linear units or mechanical drives to complete CNC machines, robots or special machines at extremely attractive prices. You can buy individual components from us and automate them yourself, or you can buy the complete machine, which will be designed individually for you.
High-performance CNC machines and CNC milling machines: precision work by isel
Isel's CNC machines and CNC milling machines are basic machines for production and combine state-of-the-art CNC control with extreme precision and flexible technology. They are used as CNC milling machine, boring machine, engraving machine, dosing machine or also as special machine as well as machining centres and are used in all areas of the metal industry, wood and plastics industry, where high demands on traversing measuring and repeat accuracy have to be met.
iselRobotik is the official manufacturer of the "RoboGolfPro" golf robot!
Play the tees of famous golfers! Train the right golf swing with the golf robot "RoboGolfPro".
Ketterer is a specialist and partner in the global market for mechanical and electromechanical drive solutions. We realize new, flexible products from idea to series maturity, customized and independent of the number of pieces. Even when it comes to developing drives for existing applications, we always find a solution!
OWIS - PRECISION IN PERFECTION
You need precision at the highest level. You want to create test setups in the shortest possible time or need positioning systems in the industrial sector to automate precise and complex motion sequences.
We have been representing OWIS in Switzerland since 1993 and have been able to establish a loyal and satisfied clientele during this time. Whether in research, in laboratories or in the industrial sector, you will receive from us different automation components for the creation of complete, coordinated systems.
As an experimenter, these products and system kits give you the opportunity to create test setups in the shortest possible time. This enables multi-dimensional positioning, adjustment and shifting of different loads with variable speeds of macro, micro and nanoworlds.
The company OPTA GmbH based in Bensheim (D) develops and produces optical tables, breadboards and clean room technology.
Grandpa manufactures custom breadboards, tables and table systems outside standard sizes and shapes. Individual requirements such as - Laserports in various shapes and sizes or additional threaded holes outside the table surface on side and bottom parts (isolated or in rows) - can be offered by own production of products in Germany, the highest quality and at a fair price. Here you can get more information from the industry news of Businesslink, ...
